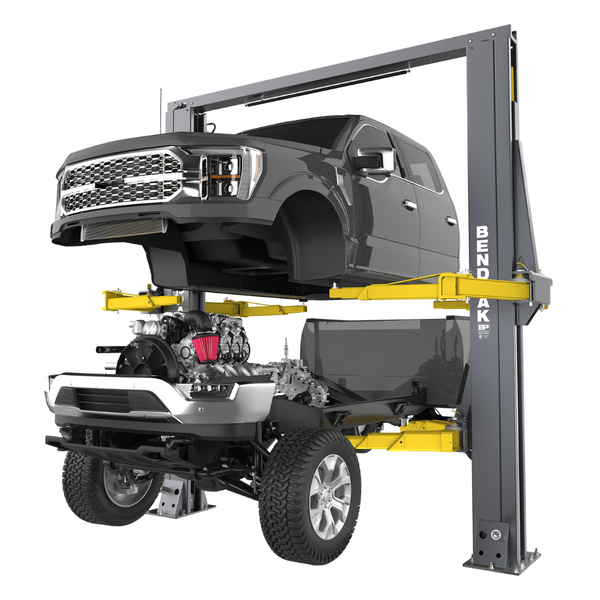

Bendpak OctaFlex 12DPS 12K Capacity 2 Post Service Lift

The BendPak OctaFlex 12DPS is a next-generation 12,000-lb two-post service lift with eight fully adjustable lifting arms designed to handle modern vehicle service challenges. Built for advanced repair environments, the OctaFlex system combines traditional frame-engaging lift capability with integrated auxiliary lift-assist arms engineered for cab-off truck service, EV battery packs, drivetrains, and other heavy components.

With triple-telescoping primary arms, independent auxiliary lifting arms, Bi-Metric symmetric/asymmetric configuration, and Direct-Drive hydraulic technology, the OctaFlex 12DPS dramatically expands what a two-post lift can do inside a professional shop.

Features

12,000-lb. load capacity, primary lift arms.
6,000-lb. load capacity, auxiliary lift assist arms.
Wide drive-thru configuration: dimension 102.75 in. (2,610 mm).
Triple-telescoping primary lift arms.
Double-telescoping screw pads offer increased versatility.
Padded overhead safety shutoff bar.
Exclusive Bi-Metric arm design for more versatile arm positioning.
User-friendly pendant controls for easier lifting operations.
Heavy-duty, aircraft-quality equalizer cables synchronize primary lift arms and maintain level lifting.
Dual, direct-drive hydraulic cylinders and oversized 53 in. (1,346 mm) tall carriages power the primary lifting system, while providing superior strength and durability.
Electric-hydraulic HVLP power system.
Self-lubricating, dura-glide UHMW polyethylene bearing system.
Safety locks spaced every 4" (102 mm).
Primary lift arms feature automatic arm restraints that can withstand over 2,000-lbs. of side force.
Drop-end arms provide a lower pad height.
Oversized cable sheaves reduce cable fatigue.
Optional stackable adapters (Sold Separately).
Shipping Weight 4246 Lbs.
Shipping Dimensions 186" x 31" x 37"

Specifications

	Model	OctaFlex (Primary Lifting Arms)
	Lifting Capacity (Set of Four)	12,000 lbs. / 5,443 kg
	Max. Capacity — Front Axle / Rear Axle	6,000 lbs. / 2,722 kg
	Max. load per Lift Arm (Each)	3,000 lbs. / 1,361 kg
A1	Max. Rise	75" / 1,905 mm
B1	Lifting Height w/ Pad	81.25" / 2,062 mm
C1	Max. Lifting Height1	80.5" / 2,042 mm
D1	Min. Height w/ Pad	6.25" / 157 mm
E	Overall Height	173.5" / 4,405 mm
F	Overall Width	161" / 4088 mm
G	Outside Posts	152" / 3,863 mm
H	Inside Posts	119.75" / 3,041 mm
I	Drive-Thru Width	102.75" / 2,610 mm
J	Floor to Top Switch	166" / 4,216 mm
K1	Front Arm Reach	26" / 719 mm (min.) - 55.25" / 1,404 mm (max.)
L1	Rear Arm Reach	29.25" / 745 mm (min.) - 60" / 1,524 mm (max.)
	Screw Pad Adjustment	2" / 51 mm
	Time to Full Rise	≈ 55 seconds
	Motor	220 VAC, 60 Hz, 1 Phase
	Sound	<70 dB

	Model	OctaFlex (Auxiliary Lifting Arms)
	Lifting Capacity (Set of Four)	6,000 lbs. / 1,134 kg
	Max. Capacity — Front Axle / Rear Axle	3,000 lbs. / 567 kg
	Max. load per Lift Arm (Each)	1,500 lbs. / 284 kg
A2	Max. Rise	101" / 2,565 mm
B2	Lifting Height w/ Pad	113.25" / 2,877 mm
C2	Max. Lifting Height	111.25" / 2,826 mm
D2	Min. Height w/ Pad	16" / 406.5 mm
K2	Front Arm Reach & Rear Arm Reach	16.75" / 422 mm (min.) - 74.5" / 1,893 mm (max.)
