Product Overview

Sold, installed and serviced in New York.

AFS is an authorized BendPak dealer and installer for NYC, Long Island and Westchester. Our crew delivers and installs your BendPak equipment and services it after the sale. Request an installed quote or call (929) 405-1033.

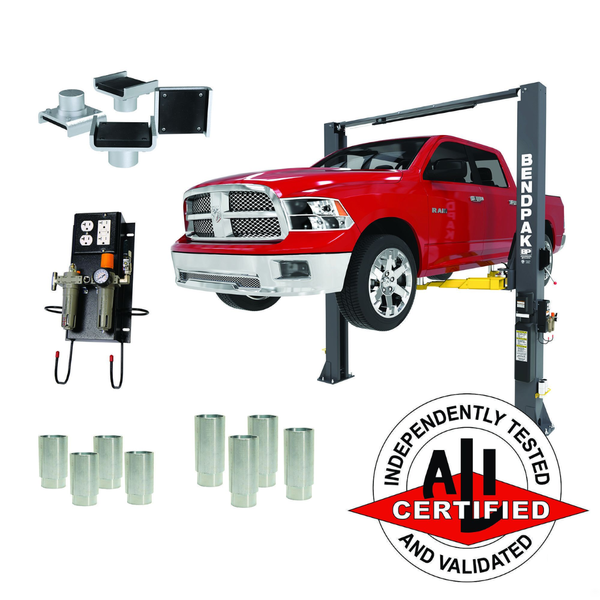

BendPak 10AP PRO 10K Capacity 2-Post Lift Package

For professionals who demand nothing but the best, BendPak is proud to introduce the Pro-Series. The AP Pro Series of two-post lifts are the ultimate solution to keeping your business ahead of the curve. Engineered for extreme use and high loads, the AP Pro-Series combines cutting-edge technology with superior safety features, making it the ideal choice for those who refuse to compromise on quality.

Features

Durable powder coat finish.
Expandable top beam accommodates wide or narrow drive-thru configurations.
Double-telescoping screw pads offer increased versatility.
Padded overhead safety shutoff bar.
Exclusive Bi-Metric arm design for more versatile arm positioning.
Single-point safety release.
Drop-end arms provide a lower pad height.
Dual hydraulic direct-drive cylinders.
Oversized 53" & 59" tall carriages for superior strength and durability.
Electric / hydraulic HVLP power system.
Self-lubricating dura-glide UHMW polyethylene bearing system.
Safety locks in each column spaced every 3".
Automatic arm restraints withstand over 2000-pounds of side force.
3/8"(10 mm) High-strength multi-strand galvanized steel equalizing cable.
Oversized cable sheave diameter reduces cable fatigue.
Four triple-telescoping arms.
ALI certified.

Included:

10AP Two-Post Lift
Frame Cradle Pads
Medium Adapters
Tall Adapters
Air-Electric Workstation

Specifications

Model	10AP PRO
Lifting capacity	10,000 lbs. / 4,536 kg
Max. Capacity	5,000 / 2,268 kg (Front Axle) 5,000 / 2,268 kg (Rear Axle)
A – Max. Rise	69 in. / 1,753 mm
B – Lifting Height	73 in. / 1,854 mm
C – Max. Lifting Height	82.5 in. / 2,095 mm
D – Min. Height	4 in. / 102 mm
E – Overall Height	145 in. / 3,683 mm
F – Overall Width	135 in. / 3,431 mm (Narrow) 145 in. / 3,683 mm (Wide)
G – Outside Columns	127.5 in. / 3,238 mm (Narrow) 137.5 in. / 3,492 mm (Wide)
H – Inside Posts	108.5 in. / 2,756 mm (Narrow) 118.5 in. / 3,010 mm (Wide)
I – Drive-Thru	92 in. / 2,337 mm (Narrow) 102 in. / 2,591 mm (Wide)
J – Floor to Top Switch	140 in. / 3,556 mm
K – Front Arm Reach	22 in. / 559 mm (min) 47.5 in. / 1,206.5 mm (max)
L – Rear Arm Reach	29.5 in. / 750 mm (min) 57 in. / 1,448 mm (max)
Max. load per Lift Arm	2,500 lbs. / 1,134 kg
Screw Pad Adjustment	2 in. / 51 mm
Time to Full Rise	≈ 45 seconds
Motor	220 VAC, 60 Hz, 1 Phase
Sound	<70 dB
