Product Overview

Sold, installed and serviced in New York.

AFS is the exclusive Coats distributor for NYC, Long Island and Westchester. Our crew delivers and installs this machine and services it after the sale. Request an installed quote or call (929) 405-1033.

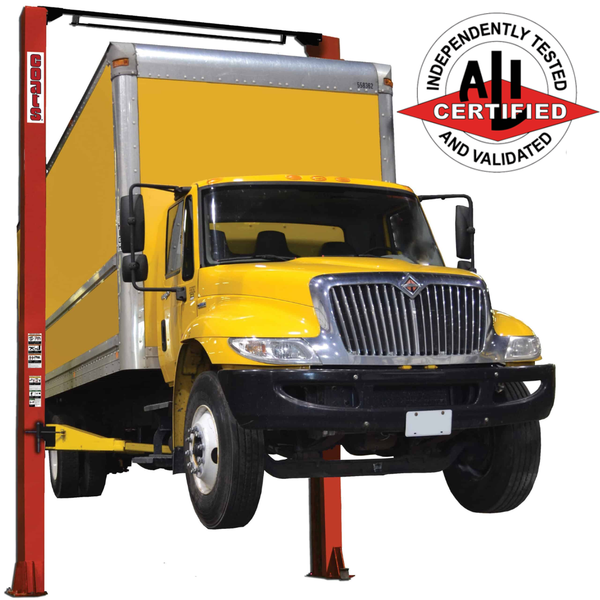

Coats 4T216SSR1 16,000 lb 2 Post Lift Symmetric - Standard Height (Red)

Features

Reduce Vehicle Set Up Time: This “drop in” style steel saddle style lift can be extended with drop in stacking adapters.
Non Fatigue Cables & Pulleys: 3/8″ Non Fatigue Cables with 3.5″ Pulleys makes the lift last longer with less maintenance.
Sturdier Lift: The self activating arm restraints last longer with less sag and lower maintenance cost.
Easy Operation: The power unit can be installed on either side. An air release mechanical locking system with stainless steel air cylinders includes a built-in air regulator.

Specifications

	Model	16K Symmetric
	Capacity	16,000 lb/7.3 T
	ALI Certification	Yes
	Lifting Arms	2 Piece Symmetric
A	Overall Height	199 1/2” (5,067 mm)
B	Overall Width	152” (3,861 mm)
C	Width Between Columns	120 1/2” (3,061 mm)
D	Drive Thru Width	106 1/2” (2,711 mm)
E	Under Bar Clearance	192 1/2” (4,890 mm)
F	Lowered Height (Standard Lift Pad)	4” (102 mm)
G	Raised Height (Standard Lift Pad)	76” (1,930 mm)
H	Raise Height With Adapters	87 1/2” (2,222 mm)
I	Front Arm Reach	34”- 62” (864 mm – 1,575 mm)
J	Rear Arm Reach	34” - 62” (864 mm – 1,575 mm)
	Lifting Time	75 Seconds
	Standard Power Requirements	230V - 60Hz - 1Ph – 20 amp 4HP/ 2 kw motor
	Shipping Weight	3,350 lb (1,520 kg)
