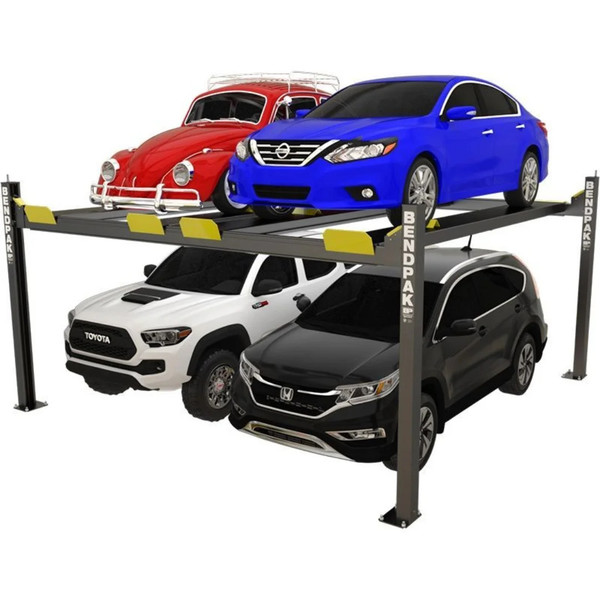

Bendpak HD-9SW 9,000-lb. Capacity Super Wide 4 Post Lift

The BendPak HD-9SW Four-Post Lift is built for one of the biggest garage problems there is: not enough protected parking. With its super-wide dual-platform layout, this 9,000-lb. four-post lift lets users park up to four vehicles in the space that would normally hold two, making it a serious upgrade for collectors, homeowners, and shops that need more indoor storage without adding more building. This is not just a parking-only stacker. The HD-9SW uses open-center runways, adjustable inside runway positioning, and accessory-ready rails so it can support vehicle storage, maintenance, and service work. For garages where daily drivers, weekend cars, trucks, and projects are all fighting for space, the HD-9SW turns a crowded floor plan into a much smarter four-post lift setup.

Features

Standard rise.
Shorter runway for smaller spaces.
Runways accommodate wide or narrow vehicles.
Runways include rail kit for optional accessories.
Electric / hydraulic power system.
Single hydraulic cylinder mounted underneath runway.
Fully enclosed lifting cables, safety locks and sheaves.
Internal anti-sway slider blocks in each column.
Oversized self-lubricating cable rollers.
Oversized sheave diameter reduces cable fatigue.
High-speed lifting.
Features heavy-duty 3/8" aircraft cable.
Rugged 1.25" roller axles.
Multi-position safety locks in each column.
Adjustable lock ladders.
Runways feature non-skid surface.
Push-button pneumatic safety release.
Independent backup slack-cable safety latches.
Inside runways adjust for different tread widths.
Customizable power unit location.
Removable approach ramps for additional drive-under clearance.
Optional drive-thru ramps available (*Sold separately).
Optional drip trays available (*Sold separately).
Optional solid deck available to increase storage capacity (*Sold separately).
Optional 4,500-lb. air / hydraulic rolling jacks available (*Sold separately).

Specifications

Lifting Capacity	9000 lb
A Min Runway Height	7 in
B Max Rise	70 in
C Max Lifting Height	77 in
D Width	202 in
E Outside Length	174 in
F Length	218.5 in
G Height	90 in
H Inside Columns	192 in
I Drive-Thru Clearance	81 in
J Runway Width	19 in
K Runway Length	164 in
L Width Between Runways	34.25 - 41 in
M Runway Centerline	56.25 - 62.75 in
N Outside Edge of Runways	75.25 - 81.75 in
Rated Wheelbase Capacity	115 in
25% Capacity	70 in
50% Capacity	85 in
75% Capacity	100 in
Locking Positions	14
Locking Spacing	4 in
Voltage	208-230V / 60 Hz / 1-Phase
Horsepower	2 HP
Sound Level	45 dB
Shipping Dimensions	22 x 200 x 52 in
Shipping Weight	2796 lb
Shipping Method	Flatbed
Offload Requirement	Forklift
