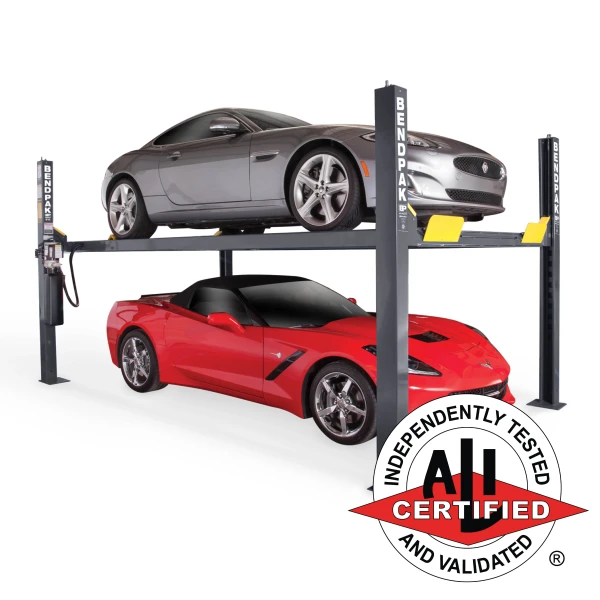

Bendpak HD-9STX 9,000-lb. Capacity Narrow Width, Extra-Tall 4 Post Lift

The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service in the shop or garages with high ceilings. Whether you're a service professional or a DIY'er, BendPak’s got the right lift for you. This model is available with optional casters, drip-trays, jack platform and more (*Sold Separately).

Features

9,000-lb. maximum lifting capacity.
CE Approved and Certified.
Meets or exceeds the standards prescribed by European Standard EN-1493.
Freestanding design.
Narrow-width.
High-rise.
Perfect for parking, storage and service.
Runways accommodate narrow and standard vehicles.
Runways include rail-kit for optional accessories.
Electric / hydraulic power system.
Single hydraulic cylinder mounted underneath runway.
Fully enclosed lifting cables, safety locks and sheaves.
Internal anti-sway slider blocks in each column.
Oversized self-lubricating cable rollers.
Features heavy-duty 3/8" aircraft cable.
Rugged 1.25" roller axles.
Multi-position safety locks in each column.
Adjustable lock ladders.
Runways feature non-skid surface.
Push-button pneumatic safety release.
Independent backup slack-cable safety latches.
Customizable power unit location.
Removable approach ramps for additional drive-under clearance.
Longer approach ramps for low-ground clearance vehicles.
Optional drive-thru ramps available (*Sold Separately).
Optional drip trays available (*Sold Separately).
Optional solid deck available to increase storage capacity (*Sold Separately).
Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45).
ETL Approved.

Specifications

Lifting Capacity	9000 lb
A Min Runway Height	5 in
B Max Rise	82 in
C Max Lifting Height	86.5 in
D Width	10.25 in
E Outside Length	198 in
F Overall Length	224 in
G Height	100 in
H Inside Columns	89.75 in
I Drive-Thru Clearance	76.5 in
J Runway Width	19 in
K Runway Length	188 in
L Width Between Runways	37.5 in
M Runway Centerline	56.5 in
N Outside Edge of Runways	75.5 in
Rated Wheelbase Capacity	115 in
25% Capacity	80 in
50% Capacity	95 in
75% Capacity	115 in
Locking Positions	15
Locking Spacing	4 in
Horsepower	2 HP
Voltage	208-230V / 60 Hz / 1-Phase
Sound Level	45 dB
Shipping Dimensions	22 x 192 x 34 in
Shipping Weight	1842 lb
Shipping Method	Flatbed
Offload Requirement	Forklift
