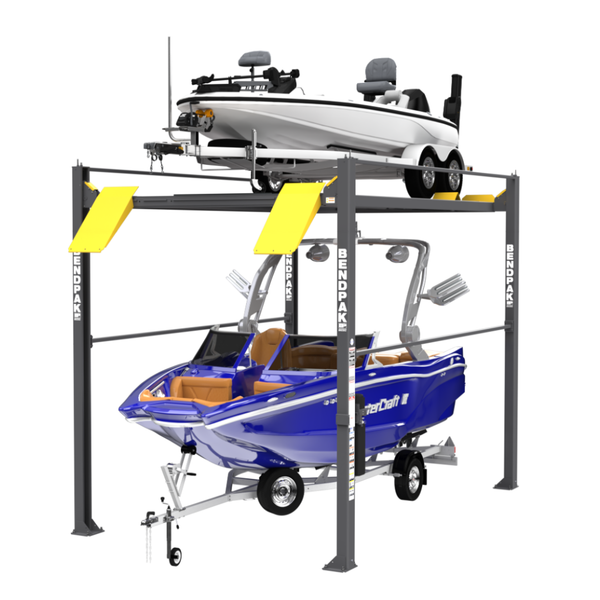

BendPak HD-7500PBX 4 Post Car Lift 7500 Lb / Multi-Level Locking Positions

The HD-7500PBX is the perfect high-rise dry-docking solution. Keep your boat in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-7500PBX pulls double-duty as a professional-grade car lift for vehicles.

Features

7,500-pound lifting capacity.
Two different lifting heights to choose from.
Electric / hydraulic power system.
Internal anti-sway slider blocks in each column.
Both models feature heavy-duty 3/8" aircraft cable.
Multi-position safety locks in each column.
Runways include rail-kit for optional accessories.
Single hydraulic cylinder underneath runway.
Over-sized self-lubricating cable rollers.
Rugged 1-1/4" roller axles.
Adjustable lock ladders.
Push-button pneumatic safety release.
Durable powder coat finish.

Specifications

	Model	HD-7500PBX
	Lifting capacity	7,500 lbs. / 3,402 kg
	Maximum capacity front axle	3,750 lbs. / 1,701 kg
	Maximum capacity rear axle	3,750 lbs. / 1,701 kg
A	Min. Runway Height, Lowered	5 in. / 125 mm
B	Maximum Rise	140 in. / 3,560 mm
C	Maximum Lifting Height	145 in. / 3,681 mm
D	Overall Width	132.165 (±.125) in. / 3,357 (±3.2) mm
E	Outside Length	198 in. / 5,028 mm
F	Overall Length	224.5 in. / 5,703 mm
G	Height of Post	157.9 in. / 4,010 mm
H	Distance Between Posts	122.165 in. / 3,103 mm
I	Drive-Through Clearance, Width	108.5 in. / 2,758 mm
J	Runway Width	19 in. / 482 mm
K	Runway length	182.25 in. / 4,629mm
L	Width Between Runways	46.5 in. – 66.5 in. / 1,181 mm – 1,689 mm
M	Runway Centerline	68.5 in. (narrow) or 88.5 in. (wide) / 1,740 mm or 2,247 mm
N	Outside Edge of Runways	87.5 in. (narrow) or 107.5 in. (wide) / 2,221 mm or 2,728 mm
O	Drive-Thru Clearance, Height	139 in. / 3,528 mm
	Min. Wheelbase @ rated capacity	130 in. / 3302 mm
	Min. Wheelbase @ 75% capacity	110 in. / 2794 mm
	Min. Wheelbase @ 50% capacity	95 in. / 2413 mm
	Min. Wheelbase @ 25% capacity	75 in. / 1,905 mm
	Locking Positions	17 spaced every 4 in. / 102 mm
	Lifting time	≈50 seconds
	Motor	208-230 VAC, 60 Hz, 1 Ph., 18 Amps, 3 HP.
	Air supply	3 to 25 cfm at 50 to 150 psi max,
