Product Overview

Sold, installed and serviced in New York.

AFS is an authorized BendPak dealer and installer for NYC, Long Island and Westchester. Our crew delivers and installs your BendPak equipment and services it after the sale. Request an installed quote or call (929) 405-1033.

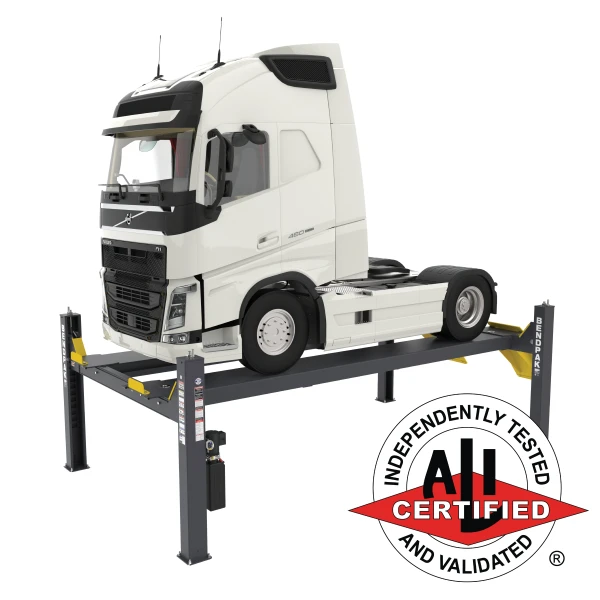

Bendpak HDS-40 40,000-lb. Capacity Standard 4 Post Truck Lift

The BendPak HDS40 Four-Post Lift is built for shops that need maximum lifting capacity without the extended runway footprint of the HDS40X. With 40,000 lbs. of capacity, this standard-length heavy-duty four-post lift gives commercial maintenance facilities, fleet shops, and truck repair operations the brute strength needed to service massive vehicles with BendPak's proven runway-based lifting design. The HDS40 carries the same professional DNA found throughout the heavy-duty lineup: ergonomic controls, massive lift components, aircraft-quality galvanized cables, overbuilt sheaves, mechanical safety systems, and rugged powder-coated steel. It is the right choice when your vehicles are extremely heavy, but your bay layout points you toward the standard HDS40 platform instead of the extended-length HDS40X.

Features

40,000-lb. lifting capacity.
Supersized 12" diameter cable sheaves.
Galvanized lifting cables.
Grease nipples.
Single hydraulic under-runway cylinder.
Integrated flow restrictor.
Durable powder coat.
Spring-loaded safety locks.
Second lock system on constant guard.
Fully enclosed lifting cables.
Multiple adjustable height locking positions.
Maintenance-free electric hydraulic power system.
Conveniently positioned operator controls.
12" x 12" base plates.
Non-skid runways.
Runways feature a durable matte finish.
Optional rolling jacks.

Specifications

Lifting Capacity	40000 lb
A Min Runway Height	9.5 in
B Max Rise	60 in
C Max Lifting Height	69.5 in
D Width	153.5 in
E Outside Length	257 in
F Overall Length	313.75 in
G Height	91.25 in
H Inside Columns	133.5 in
I Drive-Thru Clearance	109 in
J Runway Width	28 in
K Runway Length	255.5 in
L Width Between Runways	40.75 in
M Runway Centerline	74 in
N Outside Edge of Runways	102 in
Rated Wheelbase Capacity	185 in
25% Capacity	110 in
50% Capacity	135 in
75% Capacity	160 in
Locking Positions	13
Locking Spacing	4 in
Voltage	208-230V / 60 Hz / 1-Phase
Horsepower	2 HP
Sound Level	45 dB
Shipping Dimensions	32 x 264 x 36 in
Shipping Weight	6748 lb
Shipping Method	Flatbed
Offload Requirement	Forklift
