Product Overview
Sold, installed and serviced in New York.
AFS is the exclusive Coats distributor for NYC, Long Island and Westchester. Our crew delivers and installs this machine and services it after the sale. Request an installed quote or call (929) 405-1033.

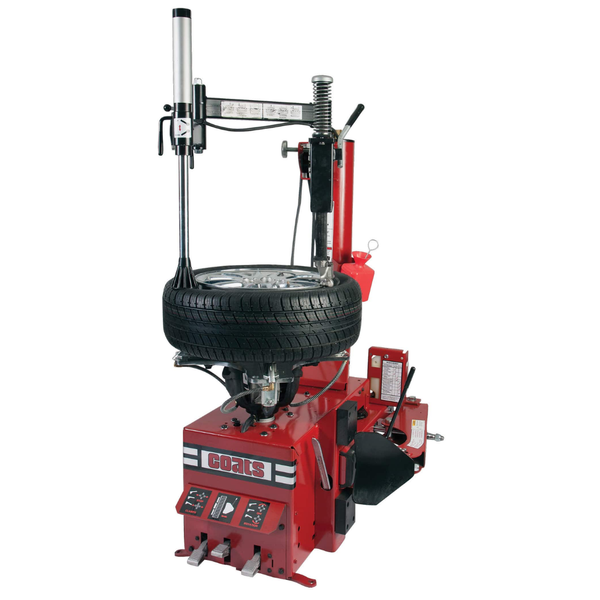

Coats RC-55E Rim Clamp Tire Changer
Features
- RC Robo Arm: Allows technicians to efficiently change difficult wheel applications, such as low-profile wheels and run-flat tires.
- Built in Bead Sealing Jets: Quickly seals beads while tabletop inflation provides a faster workflow.
- Conveniently Placed Foot Pedals: Provides precise control over every step of the changing process. The pedals are ideally placed for fluid technician movements while mounting and demounting tires.
- Made in USA.
Specifications
| Model | RC-55E |
| Wheel Handled | Alloy and Steel for Car and Light Truck |
| Rim Diameter | 6" - 24" External |
| Maximum Tire Diameter | 50" Max |
| Maximum Rim Width | 10.5" Max |
| Bead Loosening System | Foot Control, Up to 10.5" Wide |
| Wheel Clamping System | 4 Clamps, Air Cylinder Operated |
| Mount/Demount Mechanism | Swings Away for Better Access and Durability |
| Helper Devices | RC Robo-Arm |
| Bead Seating Air Volume | 3.4 Gallons in Tower |
| Inflation Gauge | 0 - 60 psi |
| Air Supply Gauge | 0 - 300 psi |
| Electric Drive System | 1 HP Electric Motor, 115 V, 60 Hz, 15 amp |
| Footprint | 35"w x 44"d x 72"h |
| Ship Weight | 620 lbs. |
