Product Overview
Sold, installed and serviced in New York.
AFS is the exclusive Coats distributor for NYC, Long Island and Westchester. Our crew delivers and installs this machine and services it after the sale. Request an installed quote or call (929) 405-1033.

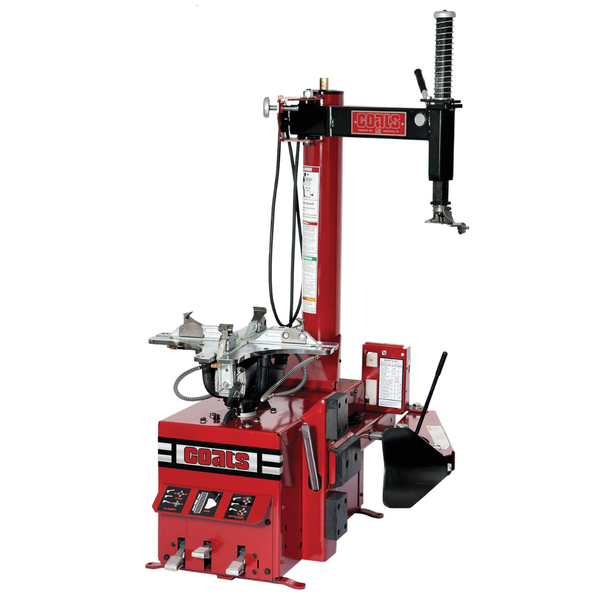

Coats RC-45E Rim Clamp Tire Changer
Features
- Built in Bead Sealing Jets: Our jets quickly seal beads, while tabletop inflation provides a faster workflow.
- Manual Swing Arm: The Manual Swing Arm is easily adjusted so that the Coats Duckhead Mount/Demount Tool is properly fitted to the tire rim.
- Convenient Foot Pedals: Pedals are ideally placed for fluid technician movements while mounting and demounting tires and provide precise control over every step of the changing process.
- Made in USA.
Specifications
| Model | RC-45E |
| Wheel Handled | Alloy and Steel for Car and Light Truck |
| Rim Diameter | 6" - 24" External |
| Maximum Tire Diameter | 50" Max |
| Maximum Rim Width | 10.5" Max |
| Bead Loosening System | Foot Control, Up to 10.5" Wide |
| Wheel Clamping System | 4 Clamps, Air Cylinder Operated |
| Mount/Demount Mechanism | Swings Away for Better Access and Durability |
| Helper Devices | N/A |
| Bead Seating Air Volume | 3.4 Gallons in Tower |
| Inflation Gauge | 0 - 60 psi |
| Air Supply Gauge | 0 - 300 psi |
| Electric Drive System | 1 HP Electric Motor, 115 V, 60 Hz, 15amp |
| Footprint | 35"w x 44"d x 70"h |
| Ship Weight | 600 lbs. |
