Product Overview
Sold, installed and serviced in New York.
AFS is the exclusive Coats distributor for NYC, Long Island and Westchester. Our crew delivers and installs this machine and services it after the sale. Request an installed quote or call (929) 405-1033.

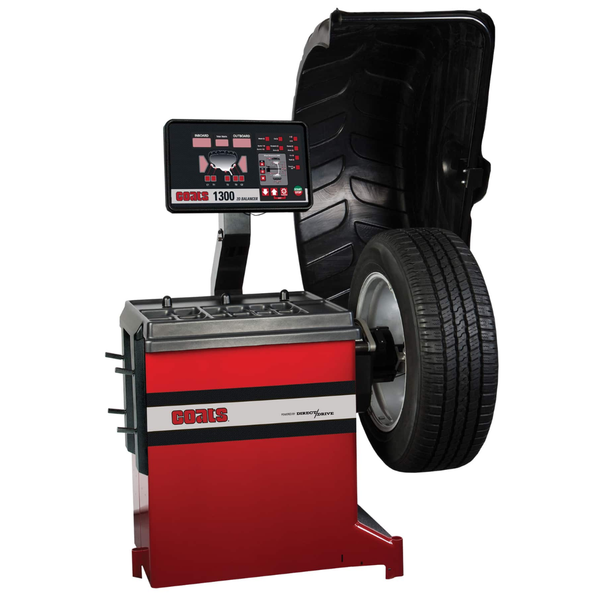

Coats 1300 Direct Drive Wheel Balancer. 220V/1P
Features
- 2D Automatic Data Entry: Offers automatic data entry of distance and diameter. This eliminates the chance of technician error and speeds up the balancing.
- Static-On-Screen: Simultaneously displays both static and dynamic unbalance data.
- Side Peg Storage: The side Peg Storage comes standard on the 1300 Wheel Balancer for easy accessory storage.
- Powered by Direct Drive: The motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero, meaning no belts or pulley that wear out and little need for calibration.
Specifications
| Model | 1300 |
| Balancing Modes | 8 |
| Wheel Diameter Range | 8" - 30" |
| Wheel Width Range | 2" - 20" |
| Maximum Tire Diameter | Up to 44" |
| Maximum Tire Weight | 150 lbs. |
| Shaft Diameter | 40 mm |
| Resolution (Round Off Mode) | 0.01 oz |
| Footprint | 60"w x 60"d x 78"h |
| Ship Weight | 639 lbs. |
| Interface | LED |
| Automatic Data Entry | Distance/Diameter |
| Electrical Requirements | 220v, 1ph |
