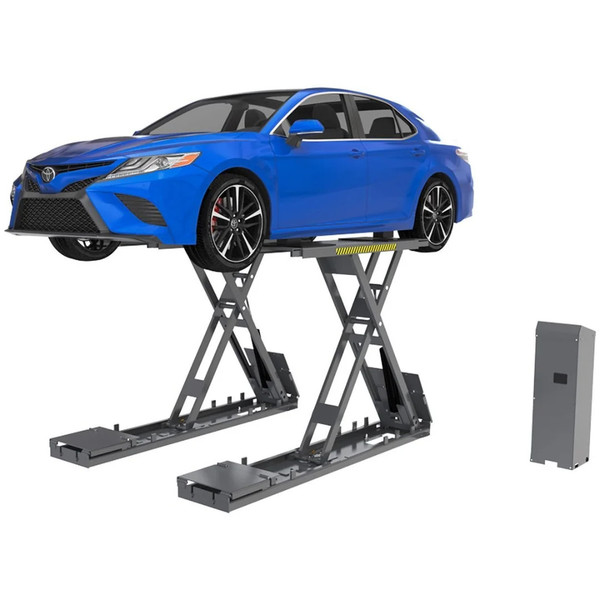

BendPak SP-7XEF 7,000 Lbs Flush Mount Scissor Lift

Introducing the SP-7XE Series Lift, a comprehensive system designed to elevate your automotive maintenance experience. Engineered with precision components and innovative features, this series is geared towards efficiency, safety, and adaptability.

Features

7,000-lb. lifting capacity.
Pneumatic safety locks.
Hardened pivot pins with "Zerk" fittings.
Open-center design.
Ergonomic controls.
Dual-cylinder hydraulic design provides extra power.
Low-profile.

Specifications

	Model	SP-7XEF
	Mounting Style	Flush mount
	Lifting capacity	7,000 lbs. (3,175 kg)
A	Maximum height raised (no blocks)	70.5 in. (1,790 mm)
B	Individual platform length	62.5 in. (1,590 mm)
B1	Extended platform length	74 in. (1,880 mm)
C	Individual platform width	21.75 in. (550 mm)
D	Total length	106 in. (2,692 mm) (no drive-up ramps)
E	Distance between platforms	38 in. (968 mm)
F	Lowered height	N/A
G	Max distance to Console	Up to 40.25 in. (1,024 mm)
	Safety Lock Positions	8
	Lifting time	≈45 seconds
	Air Pressure Requirement	30 psi (3 cfm), regulated to a maximum 125 ps
	Power Requirement	208-240 VAC, 50/60 Hz, 1 Ph., 3 HP, 18 Amps
	Hydraulic Pressure at Max. Load	3,060 psi
