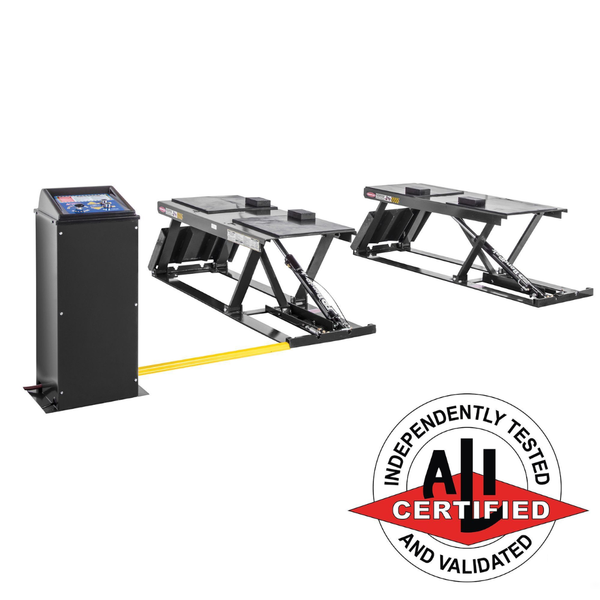

BendPak P-9000LTF 9,000 Lb. Capacity / Low-Rise Lift / Open-Center Pit-Style / Flush Mount

The P-9000LTF is one of the industry's highest-capacity low-rise scissor lifts. It offers a flush-mounted and open-center design, so you can lift heavy-duty equipment without taking up an inch of vertical space in your shop when the lift is not in use.

Features

9,000-lb. lifting capacity.
Reinforced parallel lifting arms to better support inboard loading.
Reinforced upper lift platform to better support inboard loading.
Dual-pump power unit with built in proportioning valve.
Easily convert fast-lube pits into wheel service work bays.
Mounts outside the pit rail without interfering with center work area.
Model P-9000LTF flush-mount model provides recessed drive-over option.
Heavy duty 1.5 HP electric-hydraulic power unit.
Electronic push-button controls allow smooth, single-hand operation.
Automatic multi-position safety locks with air release deliver safe, remote operation.
Powder-coat finish.
Durable rubber-topped pad surface and rubber lift blocks provide quick set-up.
Enhanced adjustable (optional) lifting arms.

Specifications

Lifting Capacity	9000 lb
Max Lifting Height	24 in
Max Lifting Height with Blocks	27 in
Lowered Height	4 in
Lifting Time	45 seconds
1st Locking Position	15 in
2nd Locking Position	19 in
3rd Locking Position	21.5 in
4th Locking Position	24.5 in
Pad Length	58.5 in
Pad Width	24 in
Length	74.4 in
Width Between Platforms	23 - 42 in
Horsepower	1.5 HP
Voltage	208-230V / 60 Hz / 1-Phase
Sound Level	40 dBA
Shipping Dimensions	40 x 77 x 24 in
Shipping Weight	1134 lb
Shipping Method	LTL
Offload Requirement	Liftgate
