Product Overview
Sold, installed and serviced in New York.
AFS is an authorized BendPak dealer and installer for NYC, Long Island and Westchester. Our crew delivers and installs your BendPak equipment and services it after the sale. Request an installed quote or call (929) 405-1033.

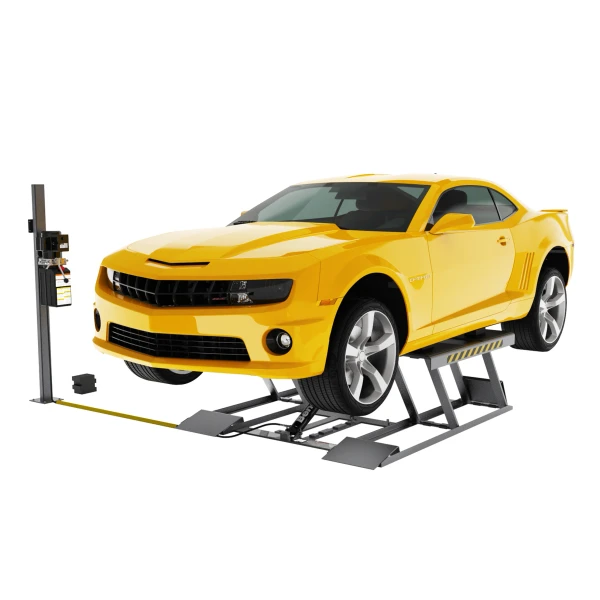

Bendpak LR-60 6,000-lb. Capacity, Low-Rise Lift
Speed up low-rise lifting work with the LR-60, a 6,000-lb. capacity car lift designed for wheel, brake, suspension, body and general service tasks. Its compact platform layout gives shops and garages a strong solution for raising vehicles to a practical working height without tying up a full-rise lift. It is a useful fit for tire shops, quick-service bays, detailers and repair facilities.
Features
- Portable version available
- Electric / hydraulic power system
- Multi-position safety locks
- Rubber lifting blocks included
- Dropped cross bar for added clearance
- Heavy-duty steel channel frame
Specifications
| Lifting Capacity |
6000 lb
|
| 1st Locking Position |
15 in
|
| 2nd Locking Position |
20.25 in
|
| 3rd Locking Position |
23.5 in
|
| Max Lifting Height |
23 in
|
| Max Lifting Height with Blocks |
26 in
|
| Lowered Height |
3.5 in
|
| Lifting Time |
45 seconds
|
| Pad Length |
53 in
|
| Pad Width |
18 in
|
| Length |
81 in
|
| Width Between Platforms |
34.75 in
|
| Horsepower |
1.5 HP
|
| Voltage |
110V / 50/60 Hz / 1-Phase
|
| Sound Level | 40 dBA |
| Shipping Dimensions | 83 x 73 x 21 in |
| Shipping Weight | 940 lb |
| Shipping Method |
LTL
|
| Offload Requirement |
Liftgate
|
