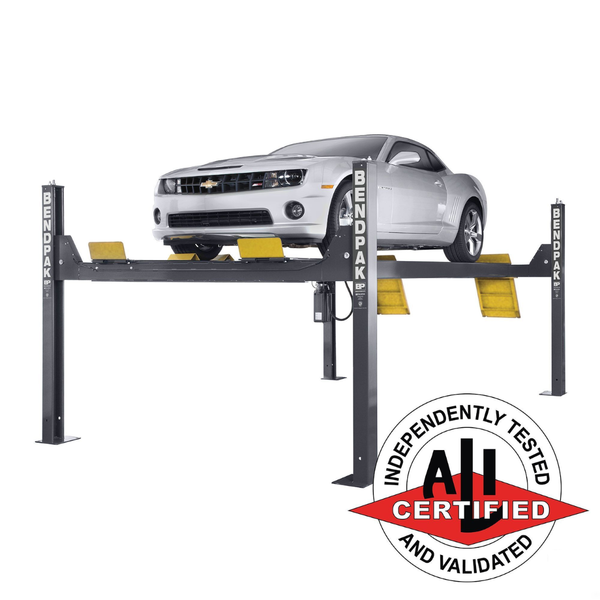

BendPak HDS-14 14,000-lb. Capacity Standard Length 4 Post Lift

The BendPak HDS-14 Four-Post Lift is engineered for professional shops that expect their equipment to work hard every day. With 14,000-lb. lifting capacity, extended runways, and commercial-grade construction, this four-post car lift is built for demanding service, storage, inspections, and maintenance on a wide range of vehicles. BendPak does not treat key components as add-ons or extras. The HDS-14 is packed with the durability, safety, and productivity features shops should expect from a serious commercial-grade four-post lift. It is designed to help technicians spend less time worrying about what they are working under and more time getting the job done.

Features

14,000-lb. lifting capacity.
CE Approved and Certified.
Meets or exceeds the standards prescribed by European Standard EN-1493.
Mid to long-style approach ramps for low ground clearance vehicles.
Runways include rail-kit for optional accessories.
Single hydraulic cylinder mounted underneath runway.
Fully enclosed lifting cables, safety locks and sheaves.
Internal anti-sway slider blocks in each column.
Pneumatic push-button safety release.
Features heavy-duty 1/2" aircraft cable.
Safety locks enclosed in columns minimize pinch points.
Oversized sheave diameter reduces cable fatigue.
Oversized self-lubricating cable rollers.
Rugged 1.75" roller axles.
Multi-position safety locks in each column.
Customizable power unit location.
Approach ramps incorporate built-in rear-wheel chocks.
Independent backup slack-cable safety latches.
Runways feature non-skid surface.
Optional drive-thru ramps available (*Sold Separately).
Optional drip trays available (*Sold Separately).
Optional 7,000-lb. capacity rolling jacks available (Model RJ-7).
ETL approved.

Specifications

Lifting Capacity	14000 lb
A Min Runway Height	7.5 in
B Max Rise	70 in
C Max Lifting Height	77.5 in
D Width	130 in
E Outside Length	213 in
F Overall Length	242 in
G Height	92 in
H Inside Columns	120 in
I Drive-Thru Clearance	98 in
J Runway Width	20 in
K Runway Length	197.5 in
L Width Between Runways	34.5 - 41.5 in
M Runway Centerline	57.5 - 64.5 in
N Outside Edge of Runways	77.5 - 84.5 in
Rated Wheelbase Capacity	140 in
25% Capacity	80 in
50% Capacity	100 in
75% Capacity	120 in
Locking Positions	15
Locking Spacing	4 in
Horsepower	2 HP
Voltage	208-230V / 60 Hz / 1-Phase
Sound Level	45 dB
Shipping Dimensions	23 x 209 x 46 in
Shipping Weight	2606 lb
Shipping Method	Flatbed
Offload Requirement	Forklift
