Product Overview

Sold, installed and serviced in New York.

AFS is an authorized BendPak dealer and installer for NYC, Long Island and Westchester. Our crew delivers and installs your BendPak equipment and services it after the sale. Request an installed quote or call (929) 405-1033.

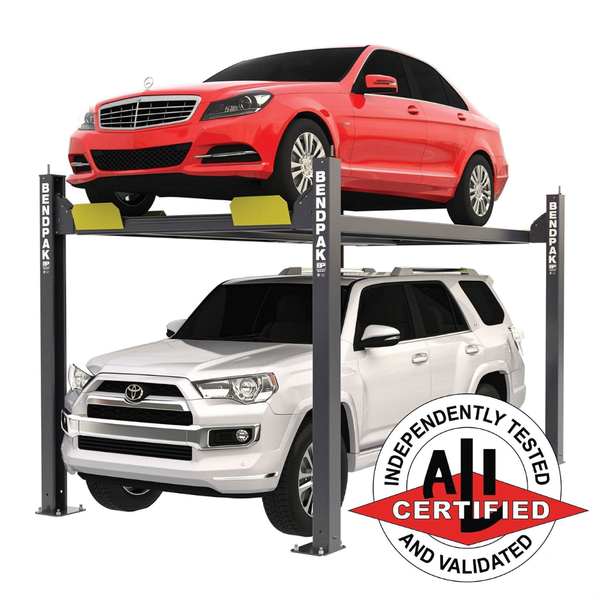

Bendpak HD-7W 7,000 Lbs Extra Wide, Extra Tall 4-Post Lift

The BendPak HD-7W Four-Post Lift gives shops and home garages a wider, more flexible 7,000-lb. parking and maintenance solution without taking over the whole building. It is built for users who want room for sports cars, sedans, light-duty trucks, and SUVs in the same lift structure, with enough side clearance to make larger mirrors and wider vehicles less of a guessing game. Even with its wide drive-thru stance and tall lifting height, the HD-7W remains only slightly larger than a typical parking space. That makes it a smart choice for low-ceiling garages, professional service spaces, and serious home setups where every square foot matters but cramped vehicle loading is not acceptable.

Features

7,000-lb. maximum lifting capacity.
Wide drive-thru with tall lifting height and short runways.
Runways include rail-kit for optional accessories.
Electric / hydraulic power system.
Single hydraulic cylinder mounted underneath runway.
Internal anti-sway slider blocks in each column.
Oversized self-lubricating cable rollers.
Features heavy-duty 3/8" aircraft cable.
Rugged 1.25" roller axles.
Multi-position safety locks in each column.
Adjustable lock ladders.
Ramps feature non-skid surface.
Push-button pneumatic safety release.
Optional 4,500-lb. capacity rolling jack available (Model RJ-45).

Specifications

Lifting Capacity	7000 lb
A Min Runway Height	5 in
B Max Rise	82 in
C Max Lifting Height	86.5 in
D Width	110.25 in
E Outside Length	174 in
F Overall Length	200.5 in
G Height	100 in
H Inside Columns	100.25 in
I Drive-Thru Clearance	86.5 in
J Runway Width	19 in
K Runway Length	158.25 in
L Width Between Runways	35 - 41 in
M Runway Centerline	56.75 - 63 in
N Outside Edge of Runways	75.75 - 82 in
Rated Wheelbase Capacity	115 in
25% Capacity	70 in
50% Capacity	85 in
75% Capacity	100 in
Locking Positions	17
Locking Spacing	4 in
Horsepower	2 HP
Voltage	208-230V / 60 Hz / 1-Phase
Sound Level	45 dB
Shipping Dimensions	22 x 168 x 32 in
Shipping Weight	1756 lb
Shipping Method	Flatbed
Offload Requirement	Forklift
