Product Overview

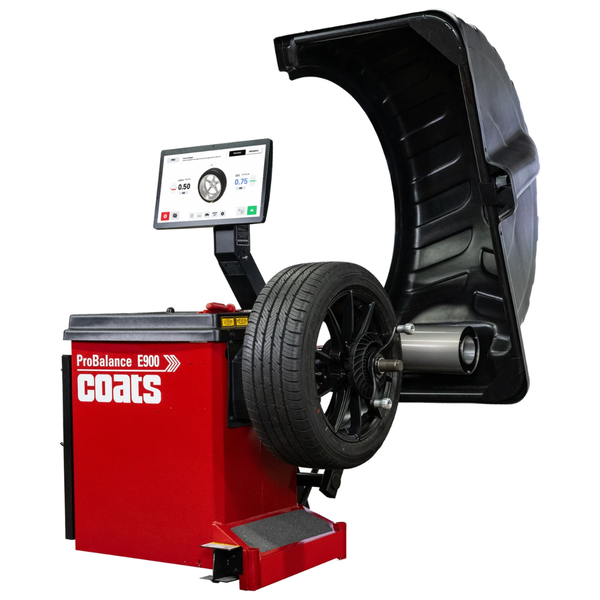

Coats E900 Direct Drive Wheel Balancer. Diagnostic. 220V/1P
The Coats ProBalance E900 is a high performing direct drive wheel balancer with new diagnostics. It’s up to 10x faster than non-direct drive balancers, and the only premium wheel balancer on the market today. Eliminate weight and shape related tire vibrations with the Coats E900 by measuring and correcting imbalance and runout issues.
Features
- Advanced Technology & Diagnostics: The technology built into the E900 is designed to let techs precisely balance wheels and test drive the wheel assembly on the balancer, assessing tire and wheel geometry to deliver a smoother ride and fewer customer returns for rework.
- Direct Drive is the the ONLY Choice: The E900 is a direct drive balancer that delivers a superior balancing result, the first time, every time, without the frequent calibrations required by other manufacturers’ systems. That’s because the construct is simple – the Direct Drive system integrates the robust wheel balancer motor and spindle into a single, factory pre-balanced assembly with ZERO noise.
- Diagnostic Roller + ProMatch Technology: The E900’s diagnostics detects wheel assembly shape related vibration issues before the wheel is mounted on the car, and ProMatch Technology helps you minimize those vibrations. The result is a smoother ride, and fewer customer returns for rework. ProMatch provides a view into wheel condition when weights alone don’t fix vibration issues and guides techs to mark and align high/low spots to minimize vibration.
- ProBalance Technology: ProBalance Technology is a unique balancing algorithm and unbalance correction methodology that solves a leading cause of comebacks: residual unbalance. ProBalance Technology works discreetly in the background of every balancing cycle to eliminate these unbalances that can generate unwanted vibration.
- Made in USA.
Specifications
| Model | E900 |
| Balancing Modes | 5 |
| Wheel Diameter Range | 8”- 30” |
| Wheel Width Range | 2” – “20 |
| Maximum Tire Diameter | Up to 44” |
| Maximum Tire Weight | 160 lbs. |
| Shaft Diameter | 40 mm |
| Footprint | 57”w x 55”d x 75” |
| Interface | Touchscreen |
| Automatic Data Entry | Offset/Diameter/Width |
| Electrical Requirements | 220v, 1ph |
