Product Overview

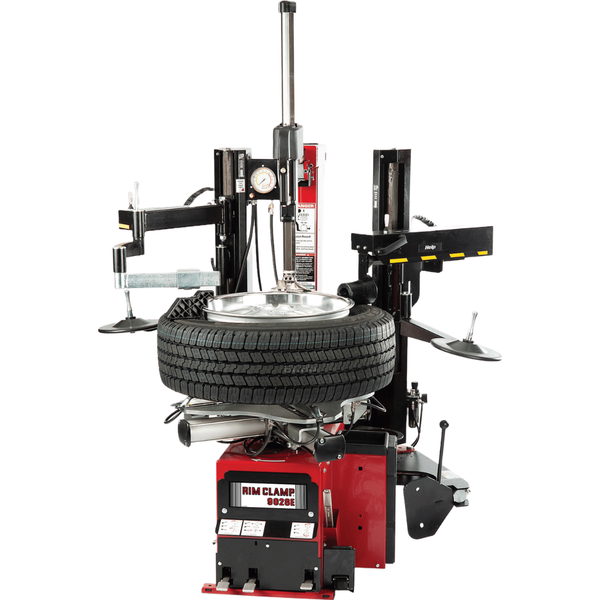

Coats 9028E Rim Clamp Tire Changer
Features
- Tilt Back Tower: Angled for no interference on second bead removal. Now tilts farther for more clearance.
- Power Devices: Power taper rollers, pneumatic drop center, and swing-in rollers handle approximately 90% of the effort required to change even the toughest tires. Technicians can concentrate on efficiency.
- Clamps Wheels Externally Up To 28”: Wheels keep getting bigger and more expensive. The Coats 9028E allows you to change tires on oversized wheels while providing complete protection. You can service the expanding market for custom alloy wheels.
- Made in USA.
Specifications
| Model | 9028E |
| Wheel Handled | Alloy, Steel, Car and Light Truck |
| Rim Diameter | 10" - 28" External |
| Maximum Tire Diameter | 47" Max |
| Maximum Tire Width | 14" Max |
| Bead Loosening System | Foot Control, Up to 14" Wide |
| Wheel Clamping System | 4 Cylinder Geared Actuation |
| Mount/Demount Mechanism | Automatic Tilt Back |
| Helper Devices | Lower Bead Lifting Roller Disc (left and right), Upper Bead Roller (right side), Bead Pressing Arm (left side) |
| Bead Seating Air Volume | Vertical 5.3 Gallons in Tower |
| Inflation Gauge | 0 - 60 psi |
| Air Supply Gauge | 0 - 230 psi |
| Electric Drive System | 125V, 60 Hz, 30 amp, NEMA L5-30P |
| Footprint | 79"w x 76"d x 86"h |
| Ship Weight | 988 lbs. |
