Product Overview

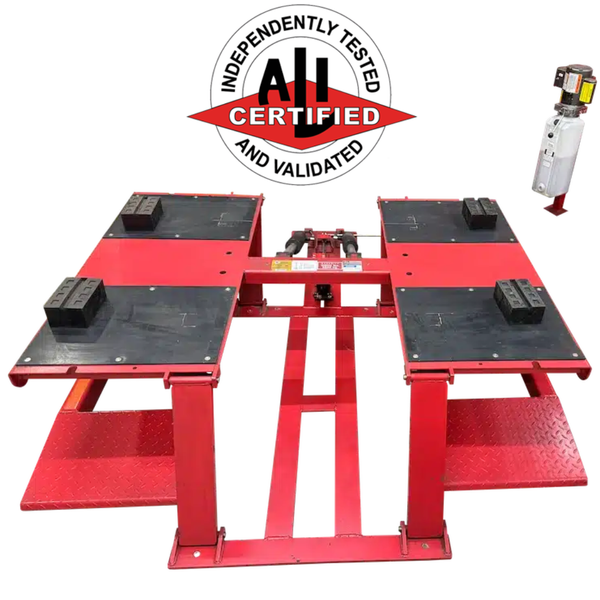

Coats 4TPD10SSR4 10,000 lb Low Rise Pad Lift - 110V
The Coats low rise pad lift’s small footprint lets you truly maximize shop space. Its drive thru design keeps the work in your shop flowing.
Features
- Safety & Convenience: Made available with auto engaging mechanical locks and a mechanical lock foot release on either side.
- Durability: Rugged, twin hydraulic cylinders (4” x 22” long) and a corrosion resistant frame with powder coat finish.
- Efficiency: USA-Made Bucher pump and motor.
Specifications
| Part Numbers | 4TPD10SSR4 |
| Capacity | 10,000 lbs / 4.5 T |
| ALI Certification | Yes |
| Overall Dimensions (W x L) | 78 1/2” x 92 1/2” (1,994 mm x 2,350 mm) |
| Deck Dimensions (W x L) | 24” x 51 1/4” (610 mm x 1,302 mm) |
| Drive Over Height | 4” (102 mm) |
| Overall Lifting Height | 21.4” (544 mm plus adapters) |
| Distance Between Lifting Pads | 22 3/4” (578 mm) |
| Distance From Lift to Power Unit | 127 3/4” (3,245 mm) |
| Frame Dimensions (W x L) | 52 1/2” x 78 1/2” (1,016 mm x 1,816 mm) |
| Power Supply | 110V |
| Mechanical Lock Positions | 3 |
| Lifting Time | 50 seconds |
| Shipping Weight | 866 lbs / 393 kg |
