Product Overview

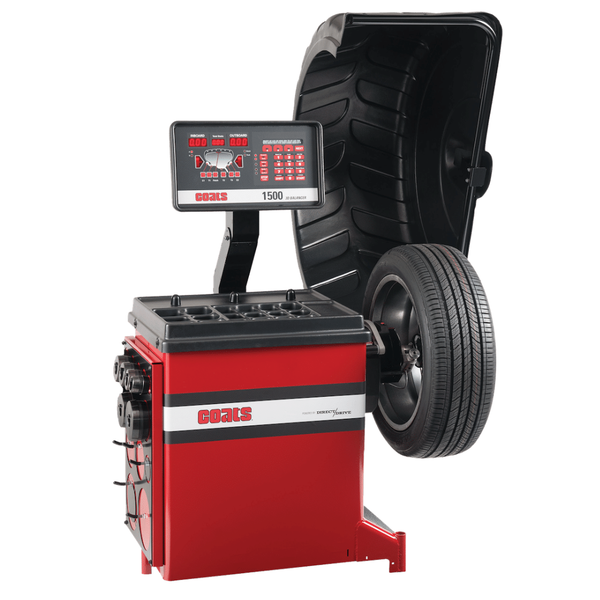

Coats 1500 Direct Drive Wheel Balancer. 220V. 1P
Features
- Laser Guided Operation: Pinpoints the exact weight location, both radially and axially and eliminates trial and error.
- Stop, Lock, Index: Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.
- Shadowboard: The side shadow board with basic accessory kit comes standard on the 1500 balancer.
- 3D Automatic Data Entry: Offers automatic data entry of the distance, diameter and width. This eliminates the chance of technician error and speeds up the balancing process.
Specifications
| Model | 1500 |
| Balancing Modes | 8 |
| Wheel Diameter Range | 8" - 30" |
| Wheel Width Range | 2" - 20" |
| Maximum Tire Diameter | Up to 44" |
| Maximum Tire Weight | 160 lbs. |
| Shaft Diameter | 40 mm |
| Footprint | 57"w x 55"d x 75"h |
| Ship Weight | 616 lbs. |
| Interface | LED |
| Automatic Data Entry | Distance/Diameter/Width |
| Electrical Requirements | 220v, 1ph |
