Product Overview

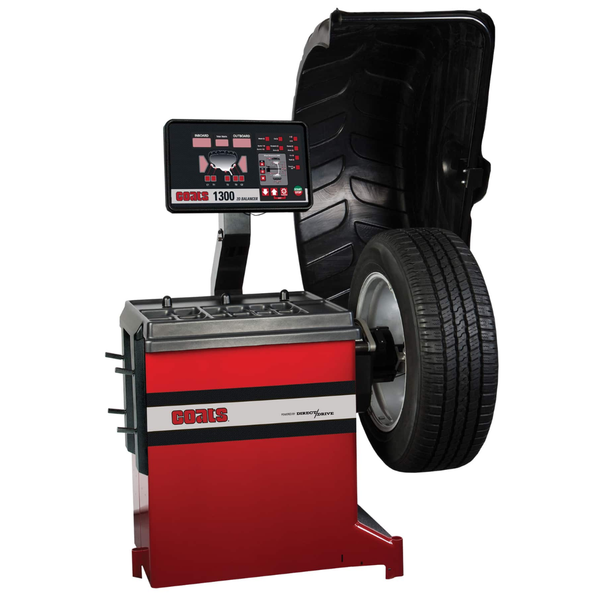

Coats 1300 Direct Drive Wheel Balancer. 220V/1P
Features
- 2D Automatic Data Entry: Offers automatic data entry of distance and diameter. This eliminates the chance of technician error and speeds up the balancing.
- Static-On-Screen: Simultaneously displays both static and dynamic unbalance data.
- Side Peg Storage: The side Peg Storage comes standard on the 1300 Wheel Balancer for easy accessory storage.
- Powered by Direct Drive: The motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero, meaning no belts or pulley that wear out and little need for calibration.
Specifications
| Model | 1300 |
| Balancing Modes | 8 |
| Wheel Diameter Range | 8" - 30" |
| Wheel Width Range | 2" - 20" |
| Maximum Tire Diameter | Up to 44" |
| Maximum Tire Weight | 150 lbs. |
| Shaft Diameter | 40 mm |
| Resolution (Round Off Mode) | 0.01 oz |
| Footprint | 60"w x 60"d x 78"h |
| Ship Weight | 639 lbs. |
| Interface | LED |
| Automatic Data Entry | Distance/Diameter |
| Electrical Requirements | 220v, 1ph |
