Product Overview

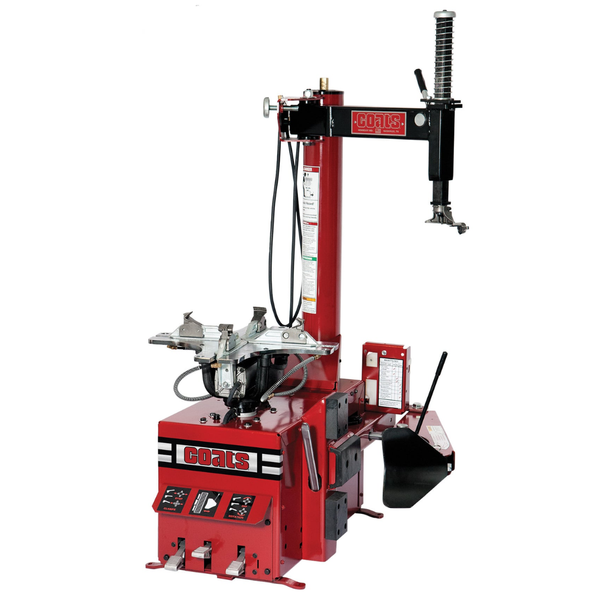

Coats RC-45A Rim Clamp Tire Changer
Features
- Built in Bead Sealing Jets: Our jets quickly seal beads, while tabletop inflation provides a faster workflow.
- Manual Swing Arm: The Manual Swing Arm is easily adjusted so that the Coats Duckhead Mount/Demount Tool is properly fitted to the tire rim.
- Convenient Foot Pedals: Pedals are ideally placed for fluid technician movements while mounting and demounting tires and provide precise control over every step of the changing process.
- Made in USA.
Specifications
| Model | RC-45A |
| Wheel Handled | Alloy and Steel for Car and Light Truck |
| Rim Diameter | 6" - 24" External |
| Maximum Tire Diameter | 50" Max |
| Maximum Rim Width | 10.5" Max |
| Bead Loosening System | Foot Control, Up to 10.5" Wide |
| Wheel Clamping System | 4 Clamps, Air Cylinder Operated |
| Mount/Demount Mechanism | Swings Away for Better Access and Durability |
| Helper Devices | N/A |
| Bead Seating Air Volume | 3.4 Gallons in Tower |
| Inflation Gauge | 0 - 60 psi |
| Air Supply Gauge | 0 - 300 psi |
| Air Drive System | 1.5 HP Air Motor, 110 - 175 psi, 15 scfm |
| Footprint | 35"w x 44"d x 70"h |
| Ship Weight | 600 lbs. |
