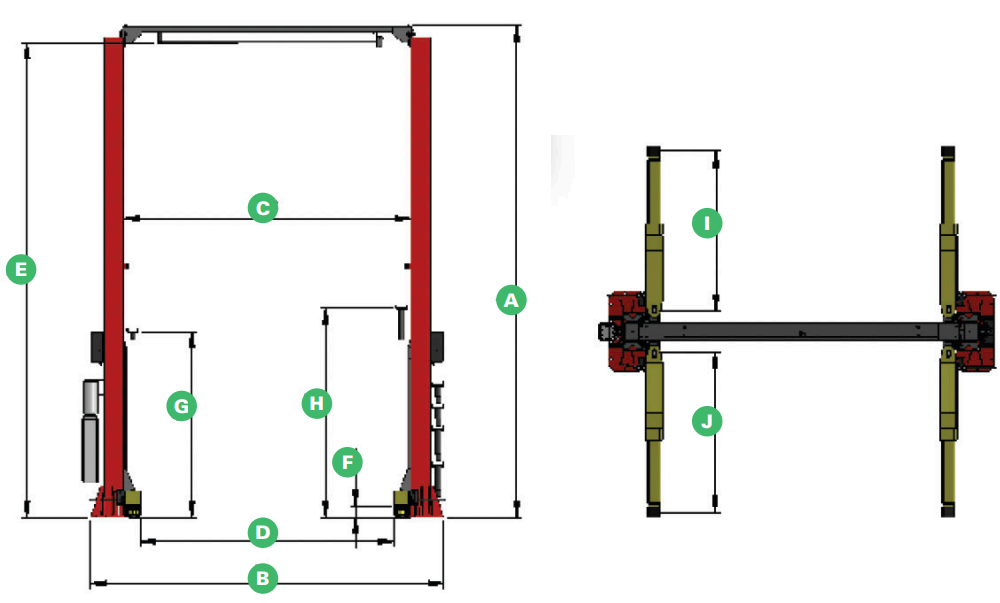

| | Model | 20K Symmetric | | Capacity | 20,000 lb/9 T | | ALI Certification | Yes | | Lifting Arms | 2 Piece Symmetric | | A | Overall Height | 199 1/2” (5,067 mm) | | B | Overall Width | 152” (3,861 mm) | | C | Width Between Columns | 120 1/2” (3,061 mm) | | D | Drive Thru Width | 106 1/2” (2,711 mm) | | E | Under Bar Clearance | 192 1/2” 4,890 mm) | | F | Lowered Height (Standard Lift Pad) | 5” (127 mm) | | G | Raised Height (Standard Lift Pad) | 76” (1,930 mm) | | H | Raise Height With Adapters | 85 1/2” (2,127 mm) | | I | Front Arm Reach | 34”- 62” 864 mm – 1,575 mm) | | J | Rear Arm Reach | 34” - 62” (864 mm – 1,575 mm) | | | Lifting Time | 75 Seconds | | Standard Power Requirements | 230V - 60Hz - 1Ph - 20 amp 4 HP/2 kw motor | | Shipping Weight | 3,850 lb (1,750 kg) | | |  |
