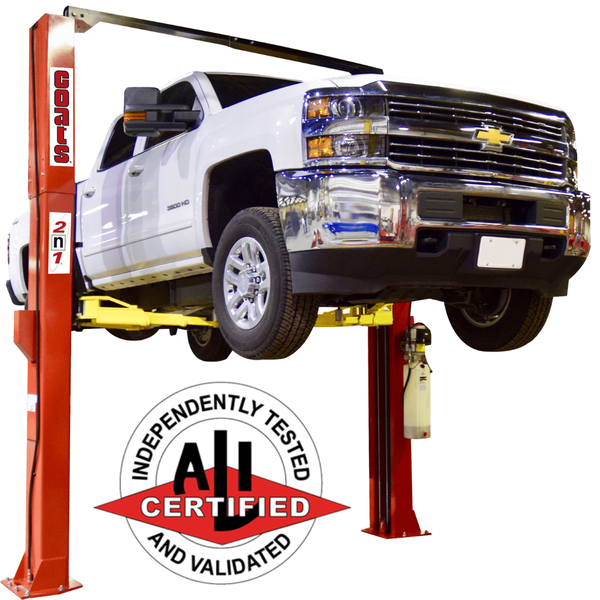

Coats 12.000 lb. Red 2 Post Symmetric

Coats 12.000 lb. Red 2 Post Symmetric

Features

• Symmetrical Model: Easy access to approved lift points with 3 piece offset front & rear lifting arms for asymmetric and symmetric loading with reinforced carriage arm pin holes and plated gear style arm restraints.
• Non Fatigue Cables & Pulleys: 3/8″ Non Fatigue Cables with 3.5″ Pulleys that are double the lifespan of plastic pulleys, making your lift last longer with less maintenance.
• Tube Column Reinforcement: The 2.5” x 1.5” inner tube support lets heavier columns flex less under load.
• US Made Power Units That Last: The energy efficient US Made Bucher 2HP power unit typically lasts the life of the lift with a single point lock release and rubber motor mounts to reduce motor noise.

Specifications

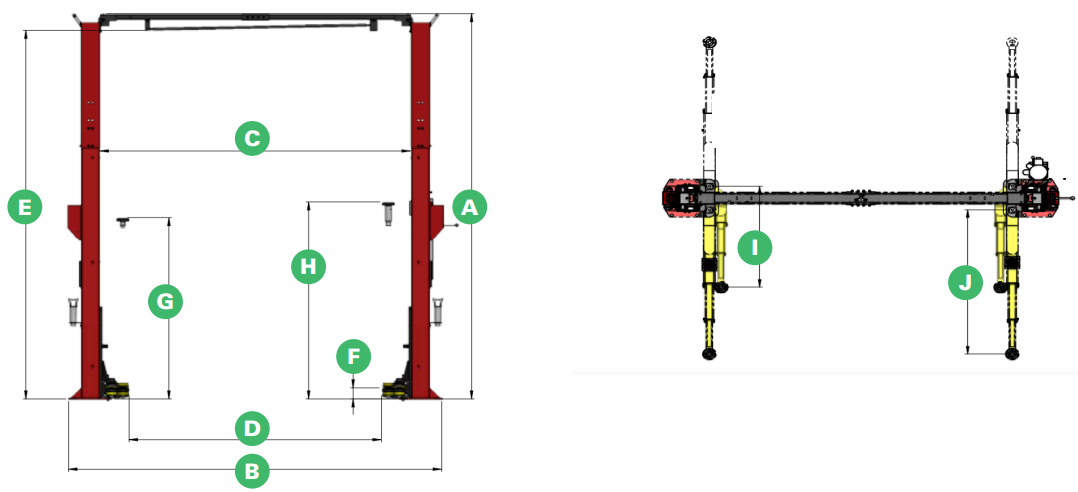

Model  12K Symmetric  Capacity  12,000 lb/5.5 T  ALI Certification  Yes A  Overall Height  154 7/8” (3,934 mm)  Extended Height  N/A B  Overall Width  145 1/8”(3,686 mm) C  Width Between Columns  117 3/4”(2,991 mm) D  Drive Thru Width  105 5/8”(2,682 mm) E  Under Bar Clearance  149 1/2”(3,797 mm) F  Lowered Height (standard pad fully in)  3-3/4”(102 mm) G  Raised Height (standard pad fully out)  77”(1,958 mm) H  Raised Height (with extensions)  86”(2,184 mm) I  Front Arm Reach  36 1/4”- 61 5/8”(921 mm-1,565 mm) J  Rear Arm Reach  36 1/4”- 61 5/8”(921 mm-1,565 mm)    Lifting Time  75 seconds  Standard Power Requirements  230 V, 1PH, 60Hz, 20A

Downloads

Manual

Flyer

General Warranty

 Click here for download
