Product Overview

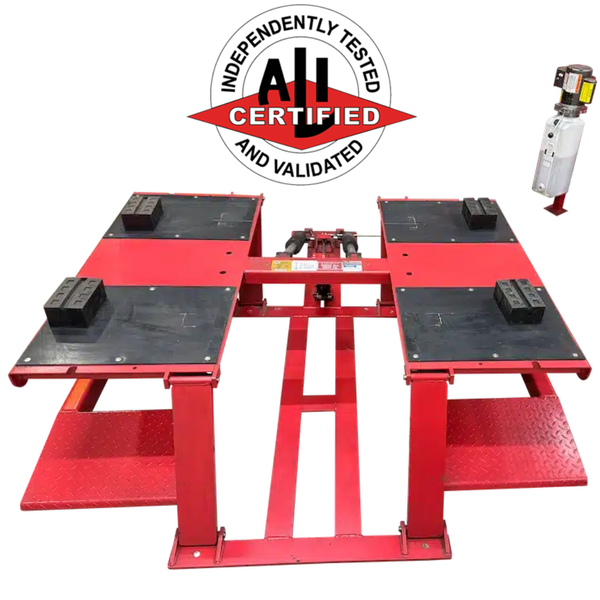

Coats 10K. Low Rise Pad Lift. 110V
The Coats low rise pad lift’s small footprint lets you truly maximize shop space. Its drive thru design keeps the work in your shop flowing.
Features
- Safety & Convenience: Made available with auto engaging mechanical locks and a mechanical lock foot release on either side.
- Durability: Rugged, twin hydraulic cylinders (4” x 22” long) and a corrosion resistant frame with powder coat finish.
- Efficiency: USA-Made Bucher pump and motor.
Specifications
| Part Numbers | 4TPD10SSR4 |
| Capacity | 10,000 lbs / 4.5 T |
| ALI Certification | Yes |
| Overall Dimensions (W x L) | 78 1/2” x 92 1/2” (1,994 mm x 2,350 mm) |
| Deck Dimensions (W x L) | 24” x 51 1/4” (610 mm x 1,302 mm) |
| Drive Over Height | 4” (102 mm) |
| Overall Lifting Height | 21.4” (544 mm plus adapters) |
| Distance Between Lifting Pads | 22 3/4” (578 mm) |
| Distance From Lift to Power Unit | 127 3/4” (3,245 mm) |
| Frame Dimensions (W x L) | 52 1/2” x 78 1/2” (1,016 mm x 1,816 mm) |
| Power Supply | 110V |
| Mechanical Lock Positions | 3 |
| Lifting Time | 50 seconds |
| Shipping Weight | 866 lbs / 393 kg |
